TRACK SYSTEM FOR LARGE CART S-TECH 9110

Your information

An error has occured, try again later

Your form was successfully submitted

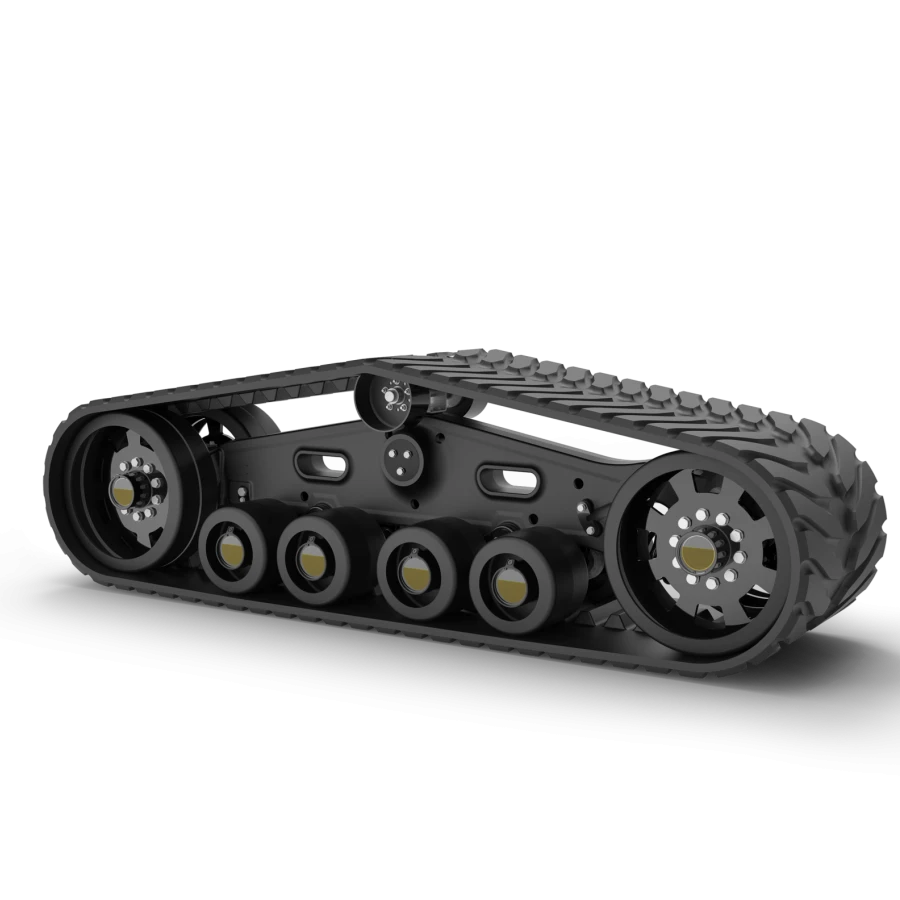

S TECH 9110 5
TRACK SYSTEM FOR LARGE CART

S-TECH 9110

  • Adaptable to large crop cart (Up tp 1500 bu)
  • A robust, low-maintenance design
  • Improved stability and reduced bounce

TOUGH. RELIABLE. EFFICIENT.
Optimized Track System Performance FOR LARGE CARTS

Built to perform in the harshest field conditions:

  • 36" wide tracks with low-profile tread for reduced soil disturbance
  • Large 7,610 in² footprint minimizes compaction and field damage
  • Ground pressure as low as 14.5 PSI under maximum load
  • Enhanced stability with reduced bounce compared to tires
  • Tandem bogie wheels conform to terrain for smoother operation
Overview

ADAPTABLE TO LARGE GRAIN AND CROP CARTS

A 4 bogie wheels track system with a large footprint for maximum flotation that can handle up to 1,500 bu (110,000lbs). Designed for fitment on carts using a machine-specific axle for maximum durability under heavy loads.

A ROBUST, LOW-MAINTENANCE DESIGN

  • Reduced soil disturbance with a 36'' track with low-profile tread pattern
  • Oil-bath hubs and self-lubricated bearings
  • Self-adjusting spring-loaded dynamic tensioner
  • Independent tandem bogie wheels Heavy-duty casted iron frame
Technical Specifications
A TRACK WIDTH 914.4
B OVERALL LENGHT 3508.8
C OVERALL HEIGHT 1550.4
D PIVOT AXIS HEIGHT 630.9
E REAR TENSION WHEEL DIAMETER 711.2
F SUPPORT WHEEL DIAMETER 376.7
WEIGHT 4 518 KG
LOAD CAPACITY IN THE FIELD 49 895 KG
ROAD TRANSPORT LOAD CAPACITY 22 680 KG
MAXIMUM ROAD TRANSPORT SPEED 40 KM/H
TOTAL GROUND CONTACT AREA 4,91 M²
* For the set of 2 tracks
Mesure S TECH 9110 LETTRE
